Camera Accessories

For Teledyne DALSA cameras

How to Order

To order any of these accessories, contact sales or your local distributor and quote the part number.

Lens Mounts

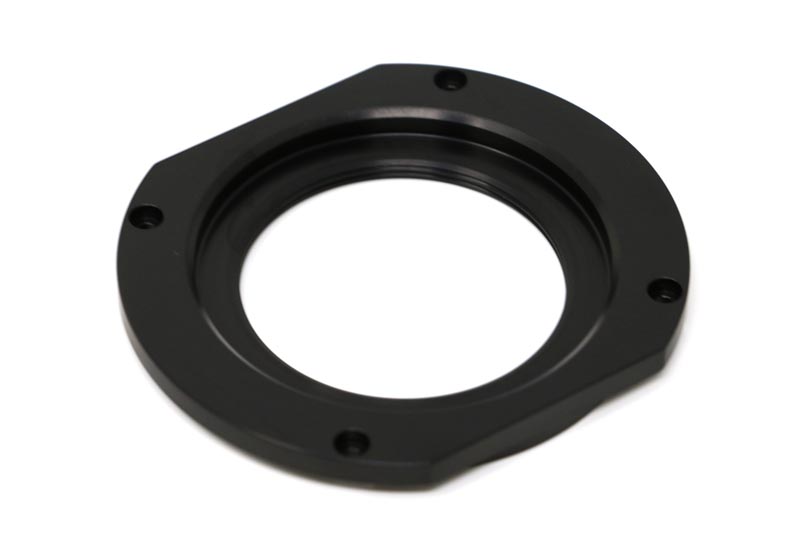

AC-LA-00113-00-R
AC-LA-00113-00-R AC-LA-00113-00-R STEP File

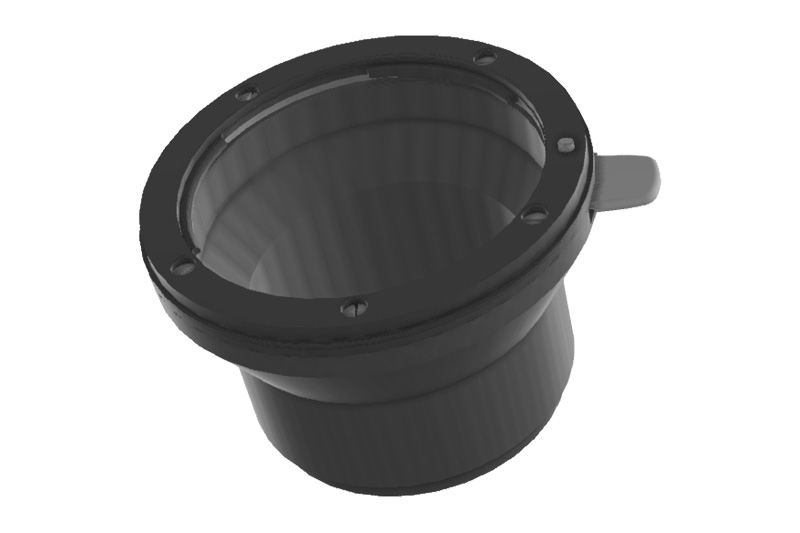

AC-LA-00115-A1-R
AC-LA-00115-A1-R
STEP File

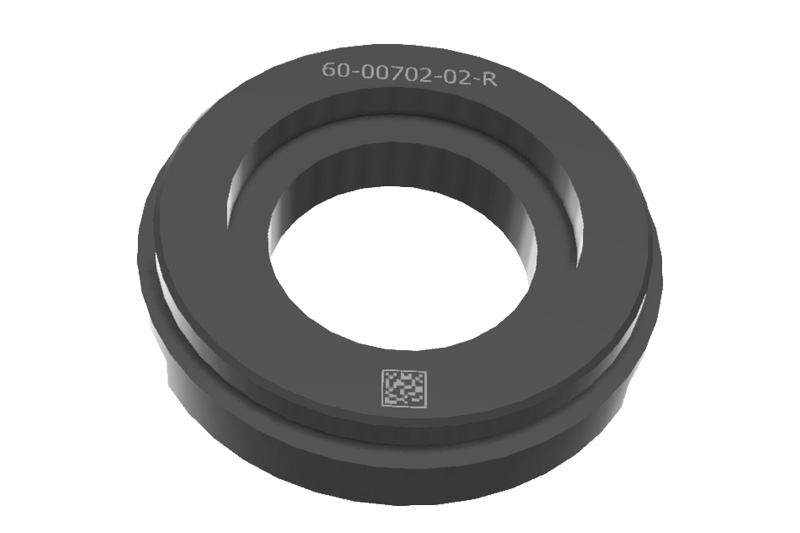

AC-LC-00001-00-R
AC-LC-00001-00-R
STEP File

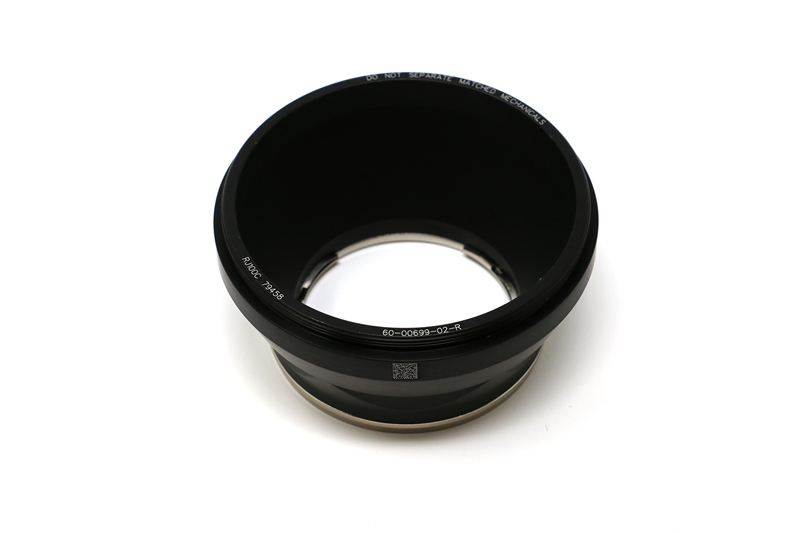

AC-LN-00001-B0-R
AC-LN-00001-B0-R AC-LN-00001-B0-R STEP File

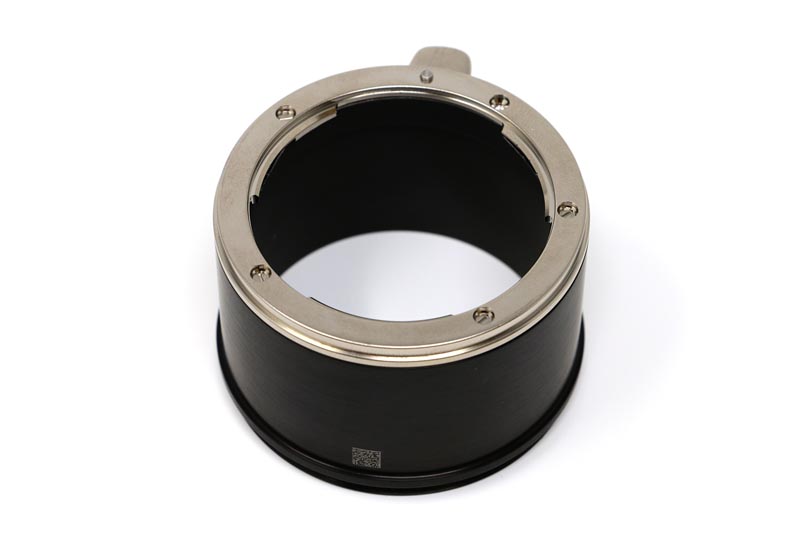

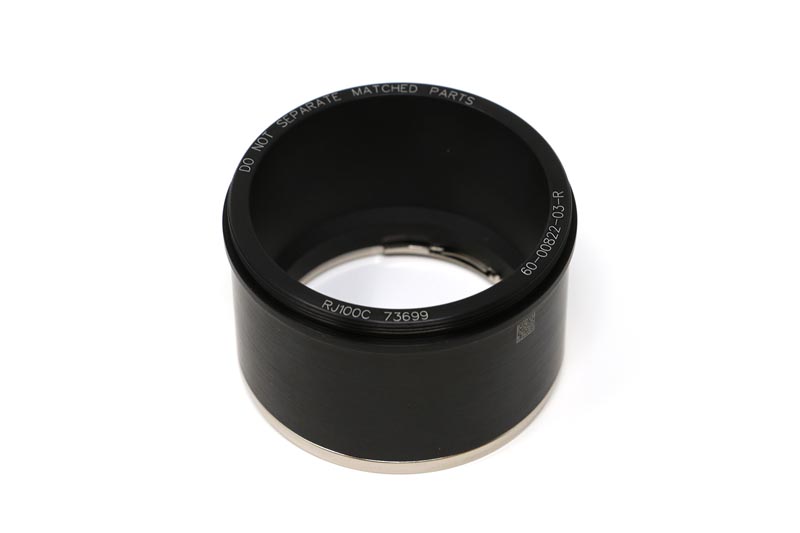

AC-LN-00002-B0-R
AC-LN-00002-B0-R AC-LN-00002-B0-R STEP File

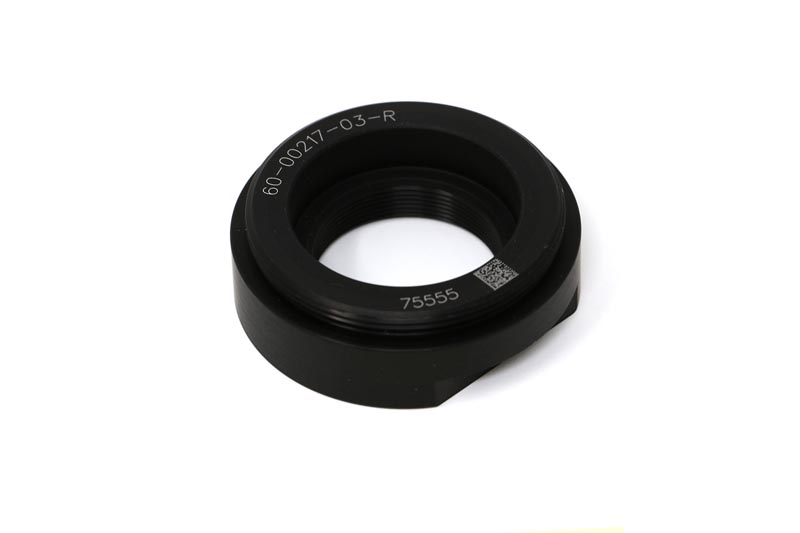

AC-UC-00002-00-R
AC-UC-00002-00-R AC-UC-00002-00-R STEP File

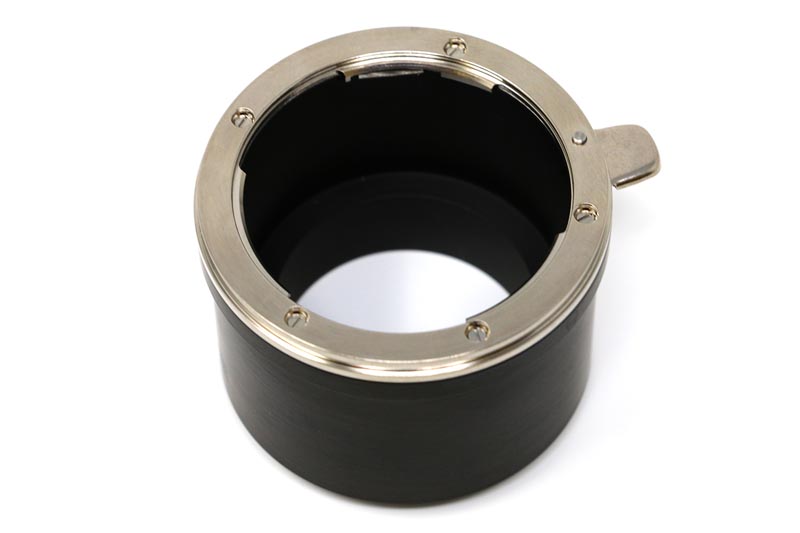

AC-UN-00002-A0-R
AC-UN-00002-A0-R AC-UN-00002-A0-R STEP File

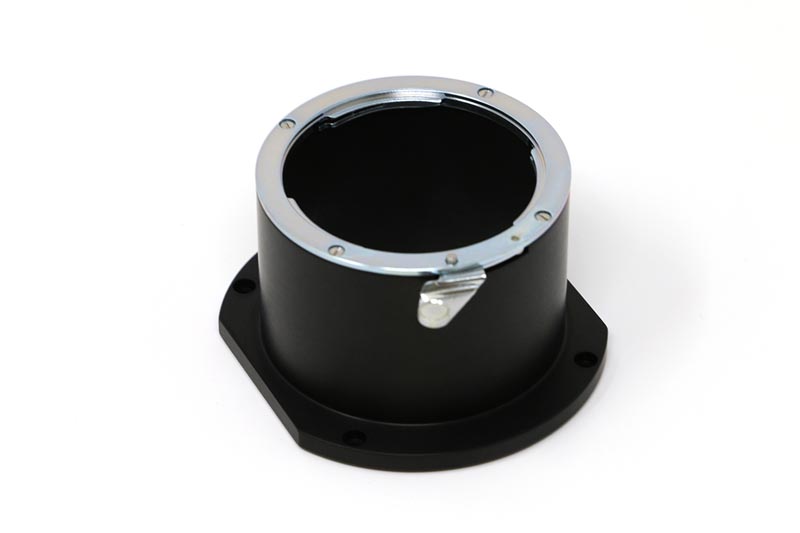

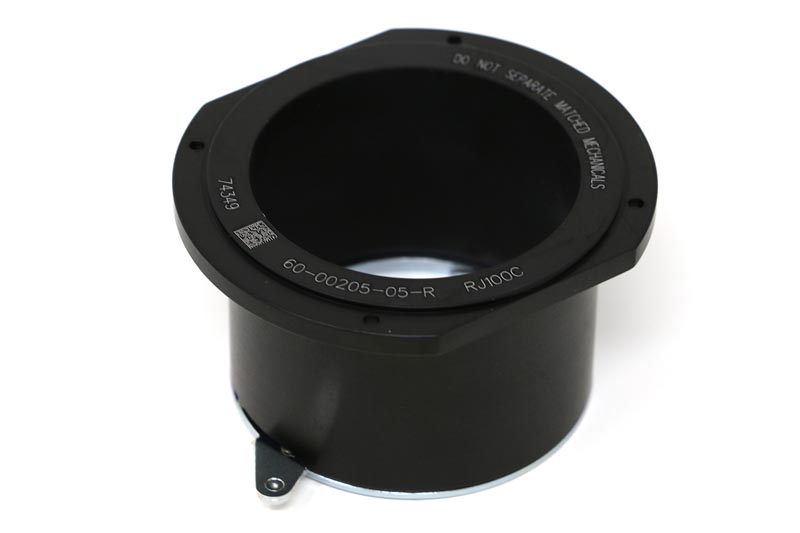

AC-UN-00003-01-R
AC-UN-00003-01-R AC-UN-00003-01-R STEP File

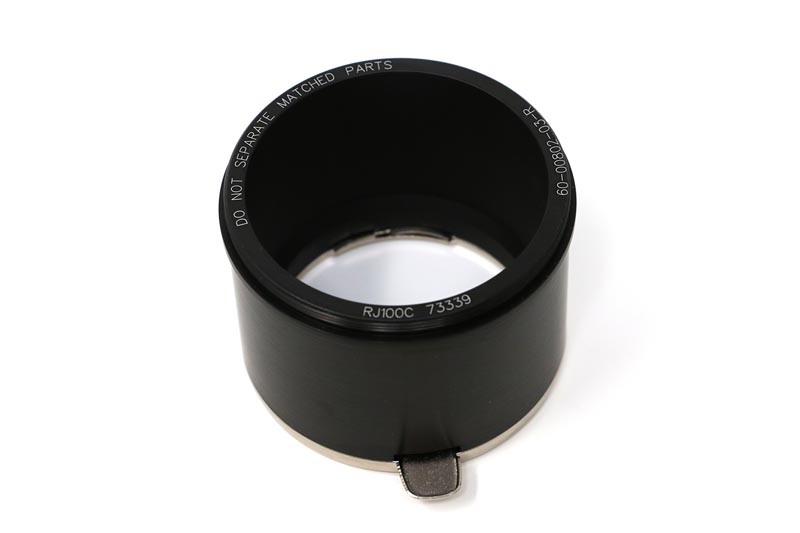

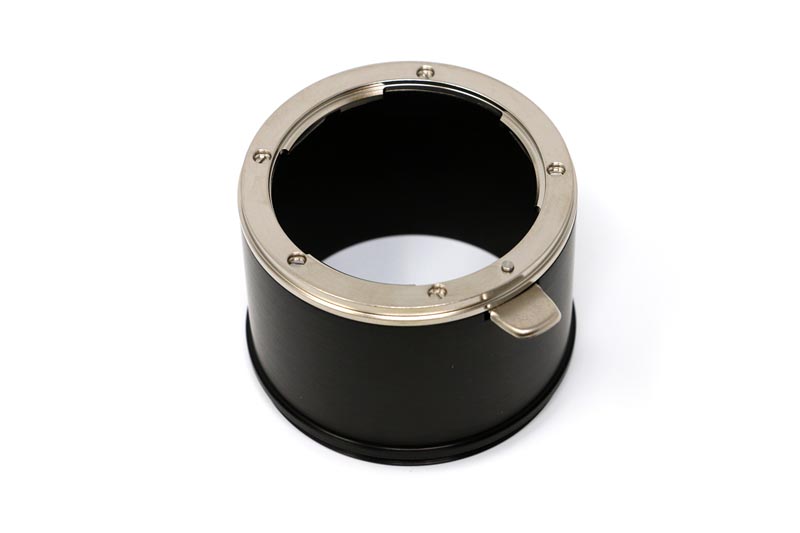

AC-UN-00004-A1
AC-UN-00004-A1 AC-UN-00004-A1 STEP File

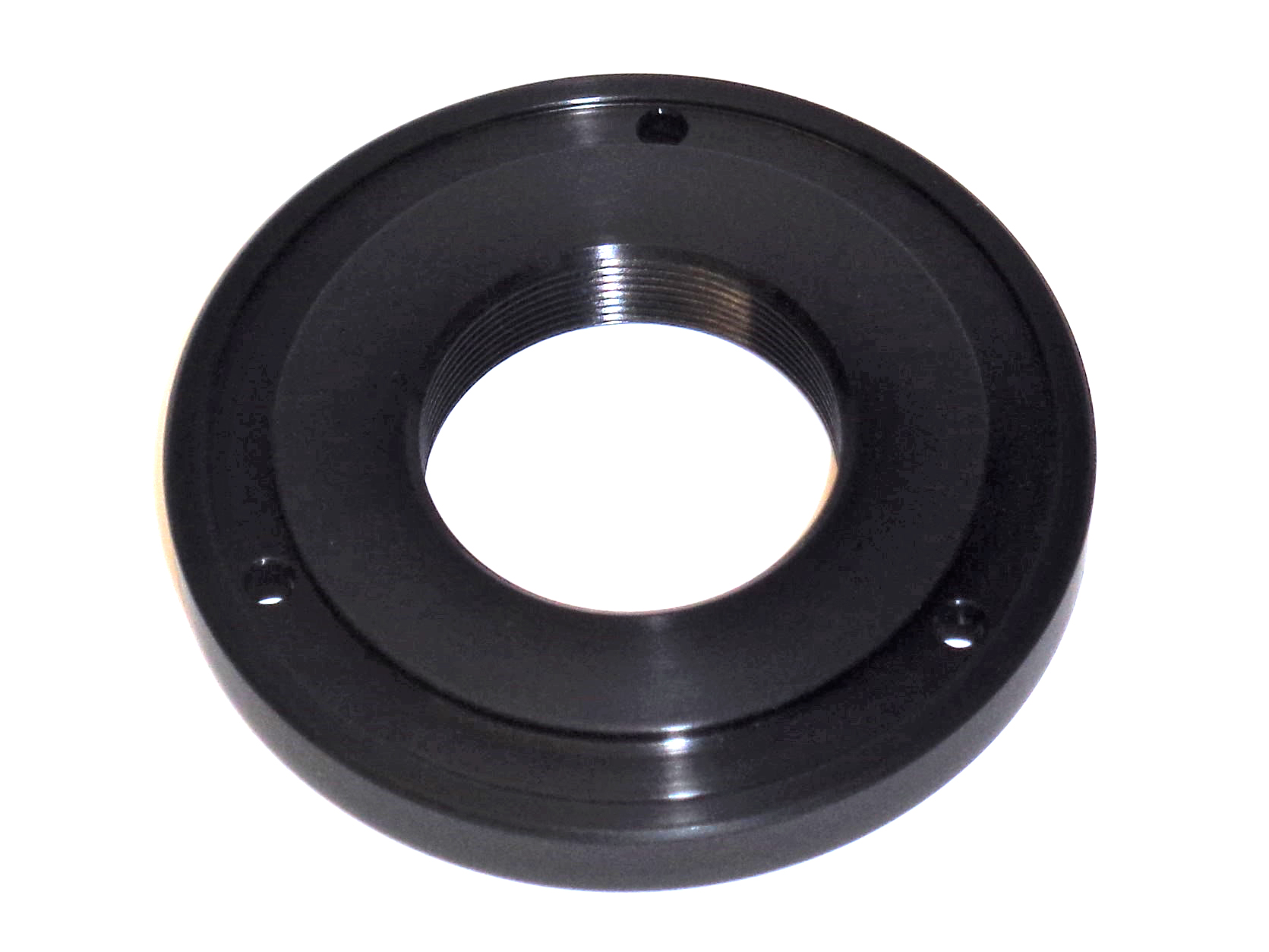

AT71KFPAVIVA-ACA
AT71KFPAVIVA-ACA
STEP File

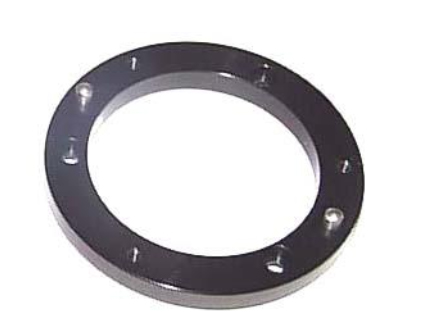

AT71KFPAVIVA-ADA
AT71KFPAVIVA-ADA
STEP File

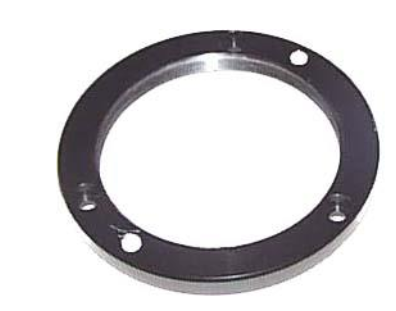

AT71KFPAVIVA-AKA
AT71KFPAVIVA-AKA
STEP File

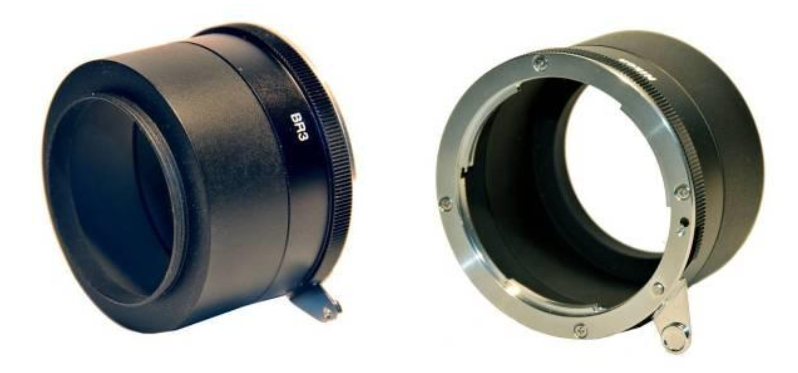

EV50-MOUNT-F
EV50-MOUNT-F
STEP File

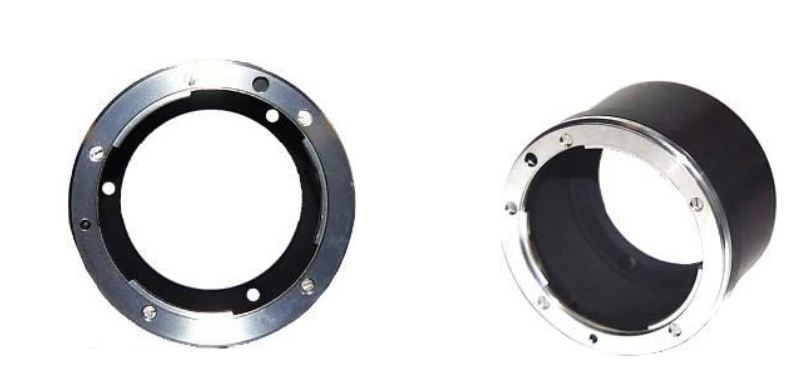

EV71KFPAVIVA-ABA
EV71KFPAVIVA-ABA
STEP File

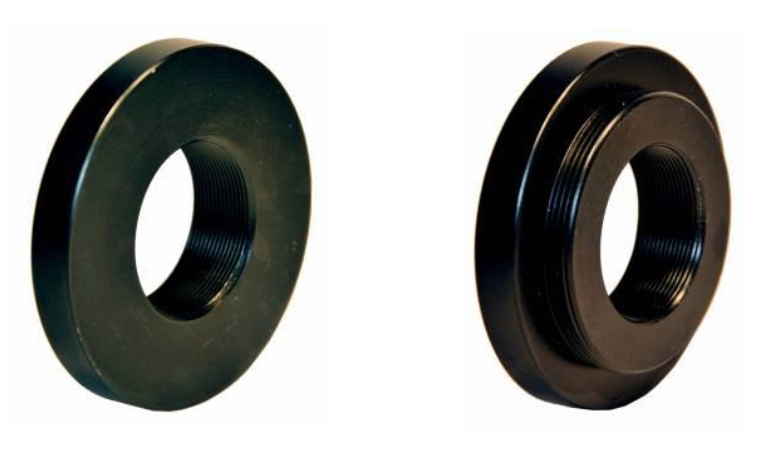

EV71-MOUNT-C
EV71-MOUNT-C
STEP File

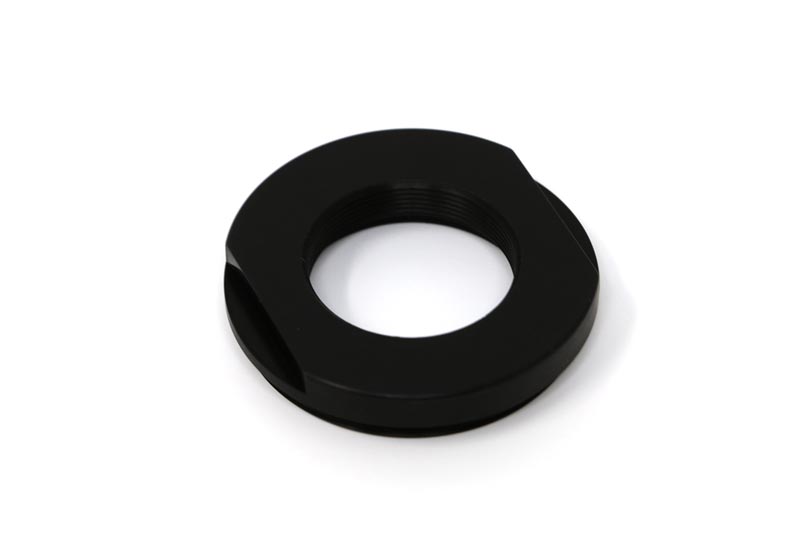

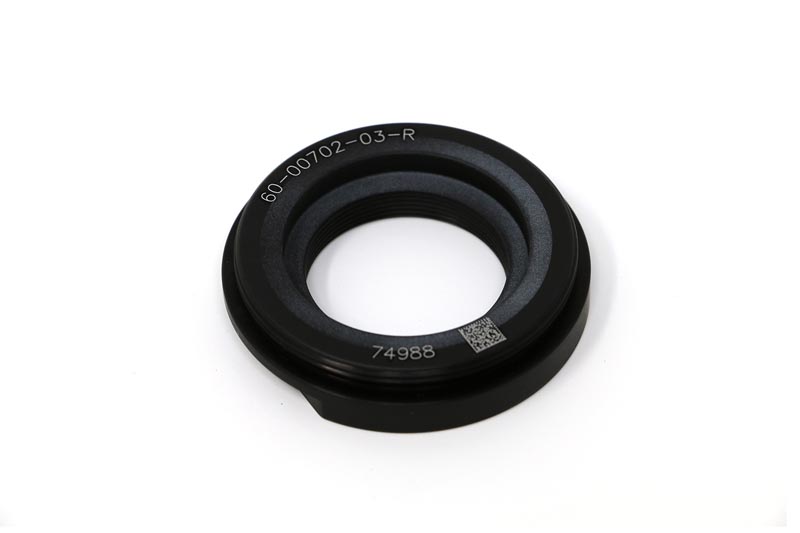

G2-AM42-MOUNT0
G2-AM42-MOUNT0 G2-AM42-MOUNT0 STEP File

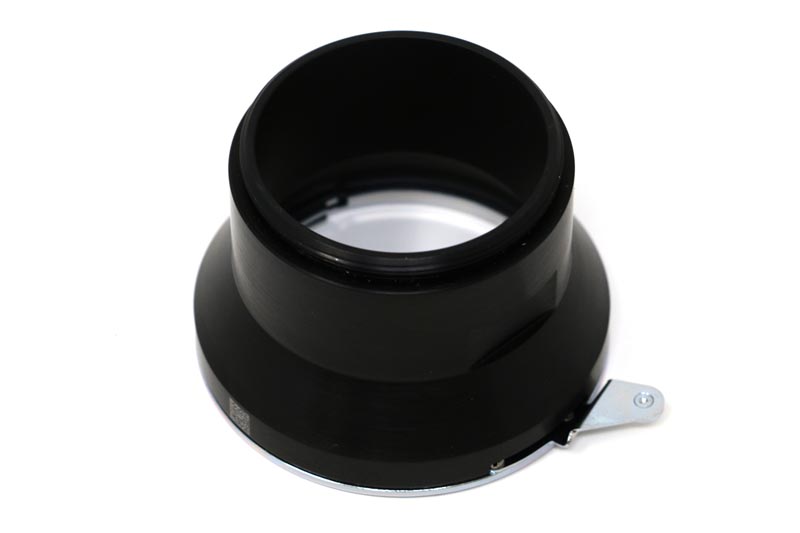

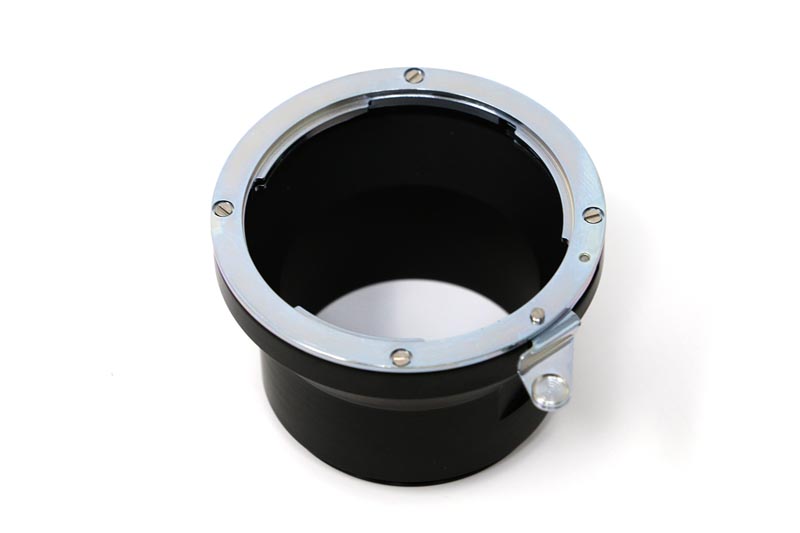

G2-AM42-MOUNT4
G2-AM42-MOUNT4 G2-AM42-MOUNT4 STEP File
Linea 2K/4K MOUNT-C
Linea 2K/4K MOUNT-C
STEP File
Linea 2K/4K MOUNT-F
Linea 2K/4K MOUNT-F
STEP File

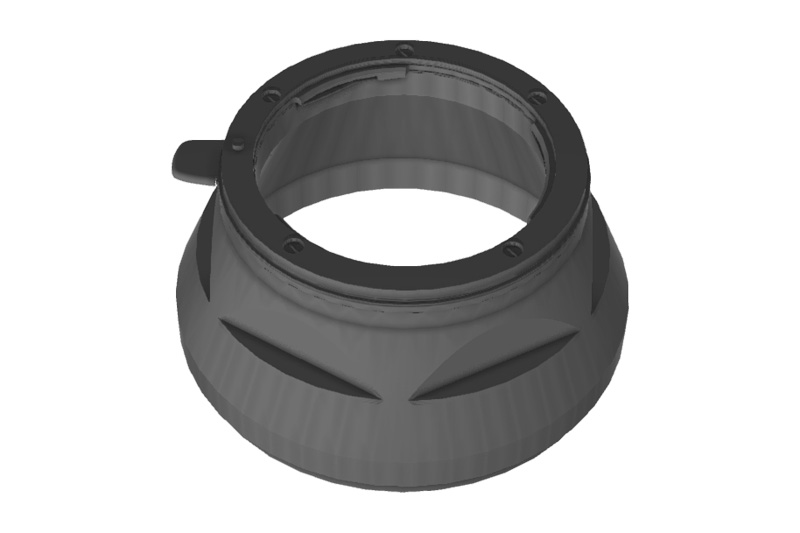

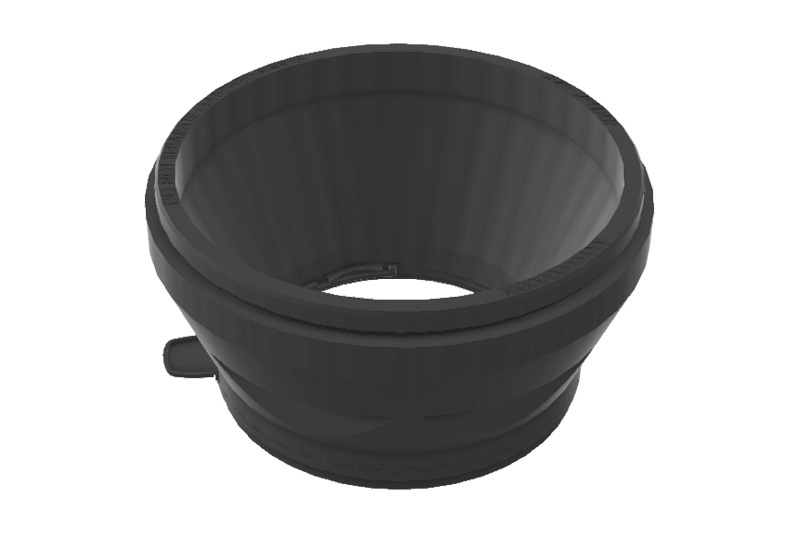

Linea 8K/16K M72 x.75
Linea 8K/16K M72 x.75 Linea 8K/16K M72 x.75 STEP File

Piranha4

Piranha4 2k Accessories

  • M58x0.75 Lens Mount - P/N: AC-LC-00001 (C-Mount) or AC-LA-00115 (F-Mount)
  • Heat sink - P/N: AC-MS-00108-01-R

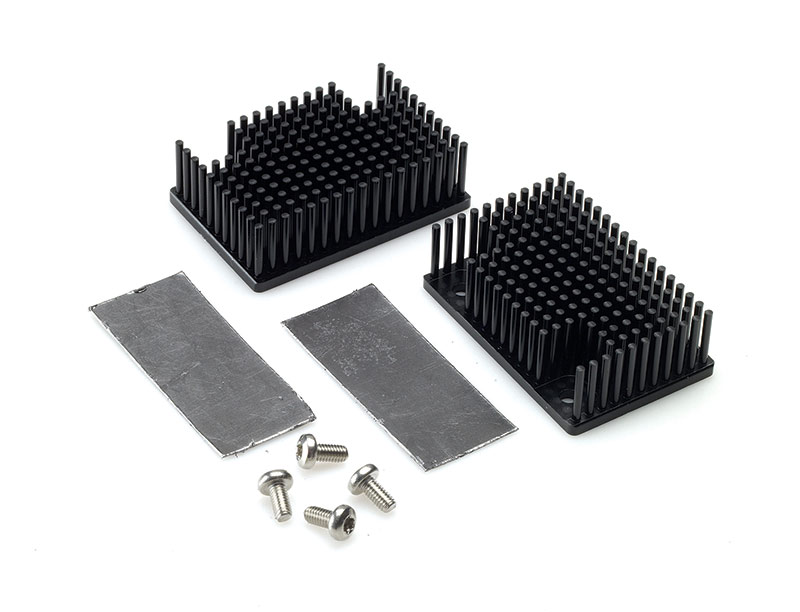

Piranha4 2k & 4k Heat Sink

Piranha4 2k & 4k Heat Sink

Piranha4 4k Accessories

  • M58x0.75 Lens Mount - P/N: AC-LN-00002 (F-Mount)
  • Heat sink - P/N: AC-MS-00108-01-R
Piranha4 2k & 4k Heat Sink

Piranha4 2k & 4k Heat Sink

Piranha4 8k Accessories

  • M72x0.75 Lens Mount - P/N: AC-LN-00001 (F-Mount)
  • Heat sink - P/N: AC-MS-00115-00-R

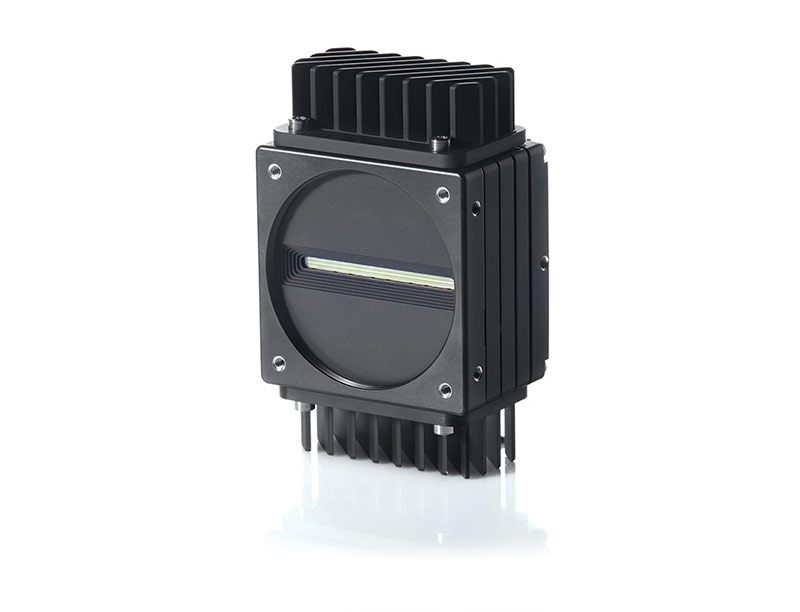

Piranha4 8k with Heat Sink

Piranha4 8k with Heat Sink

Linea

Linea 2k & 4k Accessories

  • Heatsink - P/N: AC-MS-00108-01-R

Linea 8k & 16k Accessories

  • Heatsink - P/N: AC-MS-00115-00-R

Genie Nano

Accessories and Cables

Accessory   Part Number

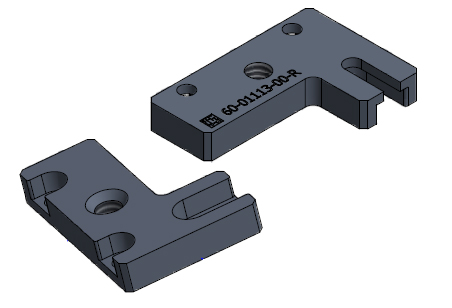

Mounting Bracket Plate
with 1/4 inch screw mount (tripod mount)
Download 3D Model (STP)		   G3-AMNT-BRA01

Mounting Bracket Assembly,
Including Hole for the Third Mounting position
(¼-20 Mounting Adapter)
35 mm length
1/4 inch screw mount

   G3-AMNT-BRA02
Cable (1M): Camera Auxiliary Samtec ISDF-05-D connector to flying Lead (open-ended)   G3-AIOC-BLUNT1M

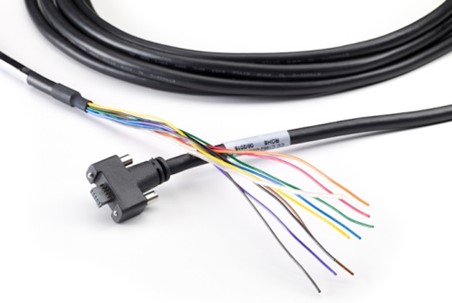

I/O Blunt End Cable
(2 meter Screw Retention to Flying Leads)		   G3-AIOC-BLUNT2M

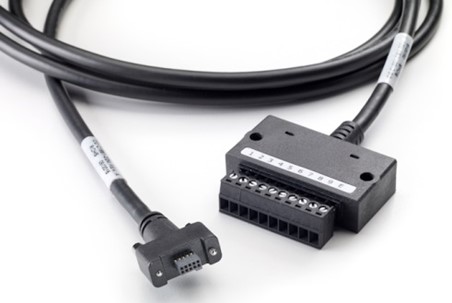

I/O Breakout Cable
(2 meter Screw Retention to Euroblock connector)		   G3-AIOC-BRKOUT2M
Power and Cable Evaluation Kit, including:
  • Power Supply (12V) to camera Aux connector (Samtec ISDF-05-D connector 10-Pin) – 1.5 meter cable
 G3-APWS-S10S04M

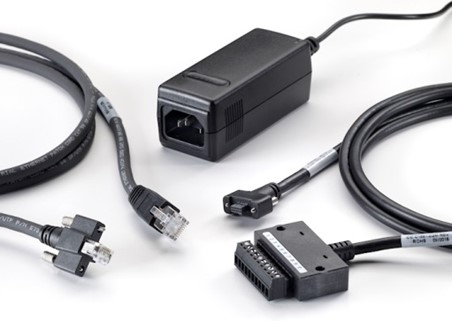

Power and Cable Evaluation Kit, including:
  • Power Supply (12V)
  • Ethernet Cable (RJ-45, 2 meter)
  • 2 meter I/O Breakout Cable (Euroblock)
   G3-ACBL-EVALKIT

Heatsink

51mm x 28mm x 15mm (screws included)

Compatible with XL Models

 G3-AHSK-51X28

Lens Mount: M42 to F-mount 12mm BFD lens

For use with XL-body Cameras

 G2-AM42-Mount4

Lens adapter

M42x1mm to C-mount adapter

 G2-AM42-MOUNT0

Falcon4-CLHS

Accessory   Part Number
Mounting Bracket Plate
with 1/4 inch screw mount (tripod mount)
Download 3D Model (STP)		   G3-AMNT-BRA01

Mounting Bracket Assembly,
Including Hole for the Third Mounting position
(¼-20 Mounting Adapter)
35 mm length
1/4 inch screw mount

   G3-AMNT-BRA02
Cable (1M): Camera Auxiliary Samtec ISDF-05-D connector to flying Lead (open-ended)   G3-AIOC-BLUNT1M
I/O Blunt End Cable
(2 meter Screw Retention to Flying Leads)		   G3-AIOC-BLUNT2M
I/O Breakout Cable
(2 meter Screw Retention to Euroblock connector)		   G3-AIOC-BRKOUT2M
Power and Cable Evaluation Kit, including:
  • Power Supply (12V) to camera Aux connector (Samtec ISDF-05-D connector 10-Pin) – 1.5 meter cable
 G3-APWS-S10S04M

Heatsink

51mm x 28mm x 15mm (screws included)

Compatible with Falcon4 (Medium body: 59mmx59mm) models

 G3-AHSK-51X28

Lens Mount: M42 to F-mount 12mm BFD lens

Compatible with Falcon4 (Medium body: 59mmx59mm) models

 G2-AM42-Mount4

Lens adapter

M42x1mm to C-mount adapter

 G2-AM42-MOUNT0

Calibir GigE

Accessory   Part Number
Power and Cable Evaluation Kit, including:
  • Power Supply (12V)
  • Ethernet Cable (RJ-45, 2 meter)
  • 2 meter I/O Breakout Cable (Euroblock)
   G3-ACBL-EVALKIT

ELiiXA+ & UNiiQA+

EV0A0000-0NTCKA1-U

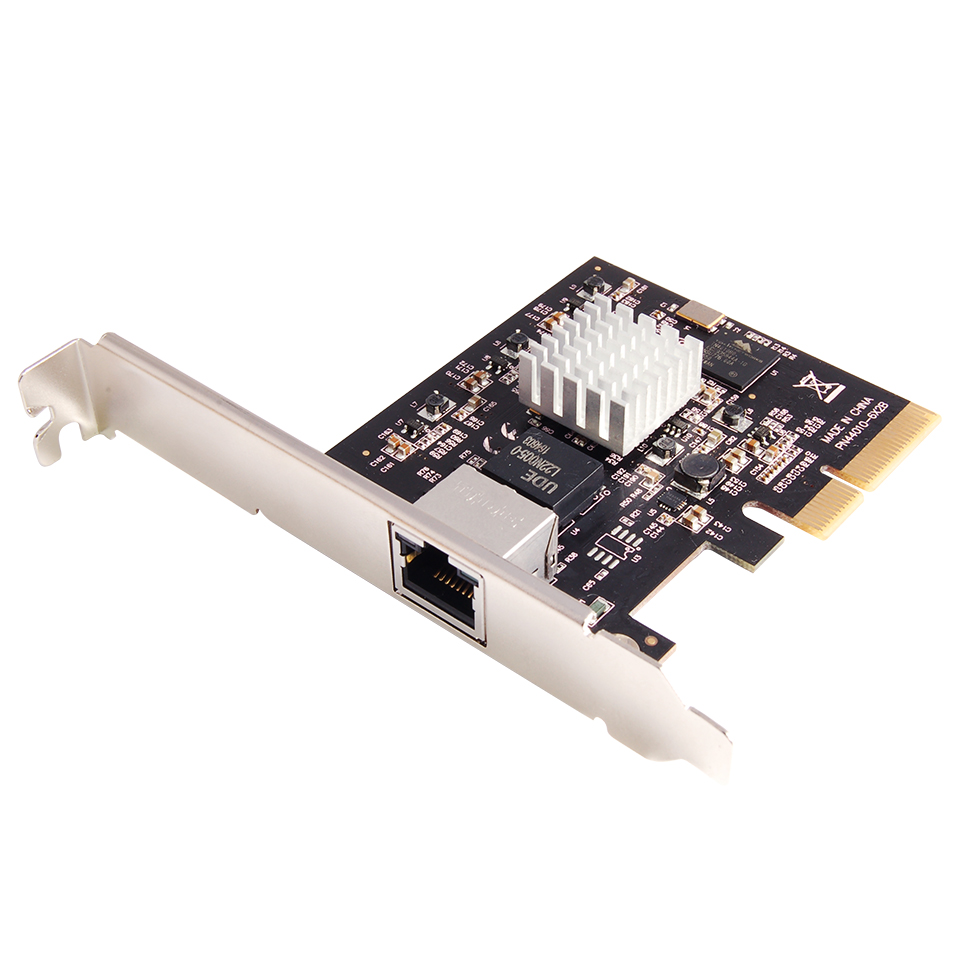

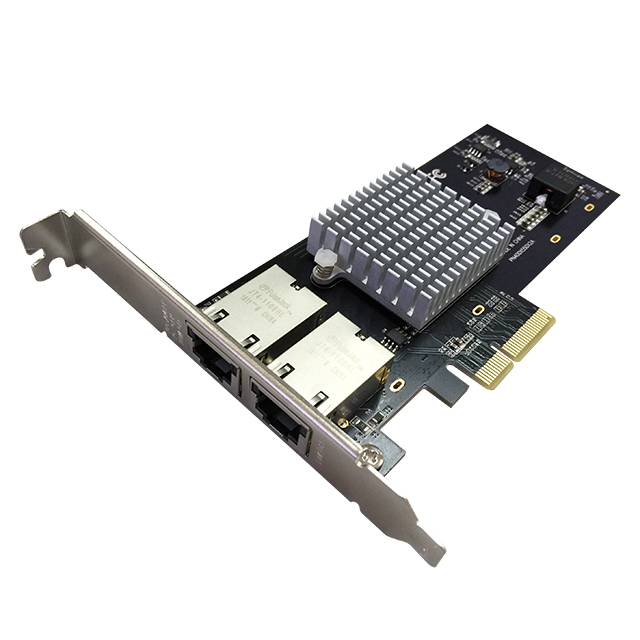

NBASE-T Evaluation kit with 1pcs Dual-ports NIC board, 2pcs GPIO cable, 2pcs Power supply cable

EV0A0000-0NTCKA1-U
EV0A0000-0NTCKA0-U

NBASE-T Evaluation kit with 1pcs One-port NIC board, 1pcs GPIO cable, 1pcs Power supply cable

EV0A0000-0NTCKA0-U
