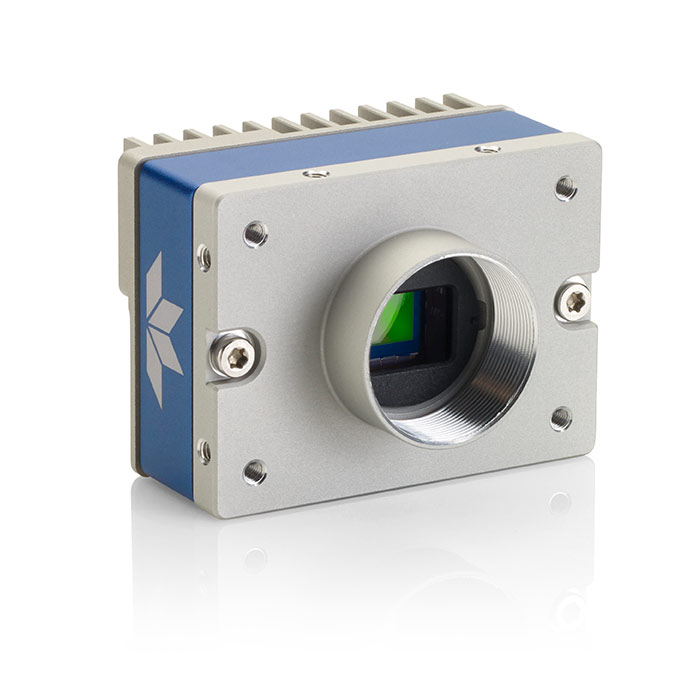

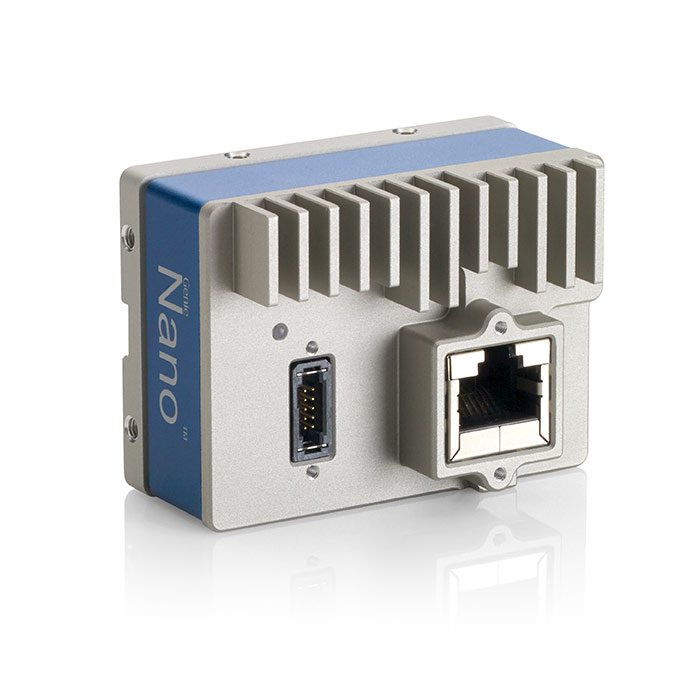

Genie Nano 5GigE

5-Gigabit Ethernet Camera
Faster, faster, faster, faster, & faster

The new standard for speed

Engineered for imaging applications that require high-speed data transfer, the all new Genie Nano 5GigE is an easy replacement for gigabit ethernet cameras built into current vision systems that rely on the existing GigE Vision interface standard. The new Genie Nano 5GigE models feature the brand new 5Gbps (5GBASE-T) link speed.

When combined with Turbodrive, you get the same throughput as 10GigE but lower cost of ownership.


5GigE	5GigE
595 MB/s Without Turbodrive	985 MB/s With Turbodrive

Flexible and powerful

Like all Genie Nano cameras, the new Genie Nano 5GigE models are offered in a compact form and available in multiple resolutions ranging from 3.2MP to 45MP, with fast frame rates to fill the entire 5GigE bandwith (and more, with Turbodrive). System designers for industrial automation, electronics manufacturing, packaging, semiconductor inspection, and general machine vision inspection can expect a smooth integration path to extend the life of an existing system with little difficulty.

Family Specifications

Camera Type	Area Scan
Sensor Technology	CMOS
Supported Interfaces	GigE Vision
Spectrum Capability	Visible (400-700 nm), Near Infrared (700-1000 nm)
Features	TurboDrive, T2IR
Conformity	CE, RoHS, FCC, GigE Vision, IP30
Exposure Control	hardware trigger, programmable via camera API, automatic
General Purpose I/O	2 digital input, 3 digital output
Power Requirement	PoE or 10-36 VDC
Synchronisation	software trigger, free-run, hardware trigger, PTP

Camera Models

Click column headings to sort

Model	Resolution	Spectrum	Interface	Pixel Size	Max Frame Rate
Genie Nano 5G C2050 Color Part number: G5-GC30-C2050 Total Pixels ~ 3.2 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	2064 x 1544 Sony IMX252	Color	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 187 fps TurboDrive: 187 fps Burst/Internal: 187 fps
Genie Nano 5G M2050 Mono Part number: G5-GM30-M2050 Total Pixels ~ 3.2 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	2064 x 1544 Sony IMX252	Mono	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 187 fps TurboDrive: 187 fps Burst/Internal: 187 fps
Genie Nano 5G C2450 Color Part number: G5-GC30-C2450 Total Pixels ~ 5.1 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	2464 x 2056 Sony IMX250	Color	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 121 fps TurboDrive: 141 fps Burst/Internal: 141 fps
Genie Nano 5G M2450 Mono Part number: G5-GM30-M2450 Total Pixels ~ 5.1 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	2464 x 2056 Sony IMX250	Mono	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 121 fps TurboDrive: 141 fps Burst/Internal: 141 fps
Genie Nano 5G C4060 Color Part number: G5-GC30-C4060 Total Pixels ~ 8.9 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	4112 x 2176 Sony IMX255	Color	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 68 fps TurboDrive: 88 fps Burst/Internal: 88 fps
Genie Nano 5G M4060 Mono Part number: G5-GM30-M4060 Total Pixels ~ 8.9 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	4112 x 2176 Sony IMX255	Mono	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 68 fps TurboDrive: 88 fps Burst/Internal: 88 fps
Genie Nano 5G C4040 Color Part number: G5-GC30-C4040 Total Pixels ~ 12.4 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	4112 x 3008 Sony IMX253	Color	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 49 fps TurboDrive: 63 fps Burst/Internal: 63 fps
Genie Nano 5G M4040 Mono Part number: G5-GM30-M4040 Total Pixels ~ 12.4 MP Interface Speed 5 Gbps Bit Depth 8 bit Operating Temperature -20—65 °C Supported Lens Options C-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 44 x 32 mm Mass 124 g	4112 x 3008 Sony IMX253	Mono	GigE Vision, 5 Gigabit Ethernet	3.45 µm	Standard: 49 fps TurboDrive: 63 fps Burst/Internal: 63 fps
Genie Nano 5G M5420 Mono Part number: G5-GM31-M5425 Total Pixels ~ 29.4 MP Interface Speed 5 Gbps Bit Depth 8 bit, 12 bit Operating Temperature -20—65 °C Dynamic Range 66 dB Supported Lens Options M42-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 59 x 41 mm Mass 183 g	5420 x 5420 On-semi XGS30000	Mono	GigE Vision, 5 Gigabit Ethernet	3.2 µm	Standard: 15 fps TurboDrive: 19.3 fps Burst/Internal: 19.3 fps
Genie Nano 5G C5420 Color Part number: G5-GC31-C5425 Total Pixels ~ 29.4 MP Interface Speed 5 Gbps Bit Depth 8 bit, 12 bit Operating Temperature -20—65 °C Dynamic Range 66 dB Supported Lens Options M42-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 59 x 41 mm Mass 183 g	5420 x 5420 On-semi XGS30000	Color	GigE Vision, 5 Gigabit Ethernet	3.2 µm	Standard: 15 fps TurboDrive: 19.3 fps Burst/Internal: 19.3 fps
Genie Nano 5G M8100 Mono Part number: G5-GM31-M8105 Total Pixels ~ 44.4 MP Interface Speed 5 Gbps Bit Depth 8 bit, 12 bit Operating Temperature -20—65 °C Dynamic Range 66 dB Supported Lens Options M42-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 59 x 41 mm Mass 183 g	8192 x 5420 On-semi XGS45000	Mono	GigE Vision, 5 Gigabit Ethernet	3.2 µm	Standard: 14 fps TurboDrive: 19.3 fps Burst/Internal: 19.3 fps
Genie Nano 5G C8100 Color Part number: G5-GC31-C8105 Total Pixels ~ 44.4 MP Interface Speed 5 Gbps Bit Depth 8 bit, 12 bit Operating Temperature -20—65 °C Dynamic Range 66 dB Supported Lens Options M42-Mount Shutter Type Global Shutter Power Requirement PoE or 10-36 VDC Synchronisation software trigger, free-run, hardware trigger, PTP Exposure Control hardware trigger, programmable via camera API, automatic General Purpose I/O 2 digital input, 3 digital output Dimensions (W x H x L) 59 x 59 x 41 mm Mass 183 g	8192 x 5420 On-semi XGS45000	Color	GigE Vision, 5 Gigabit Ethernet	3.2 µm	Standard: 14 fps TurboDrive: 19.3 fps Burst/Internal: 19.3 fps
