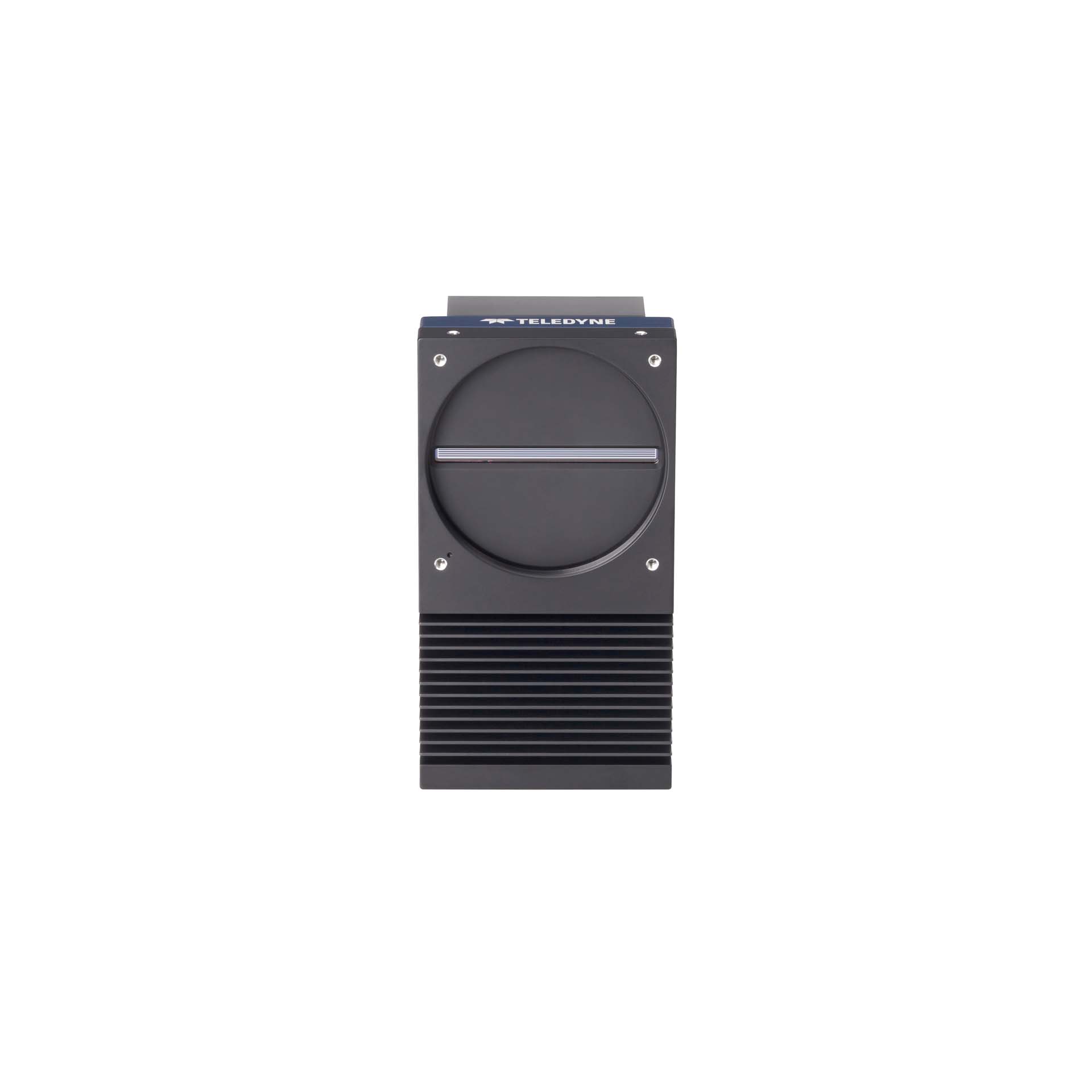

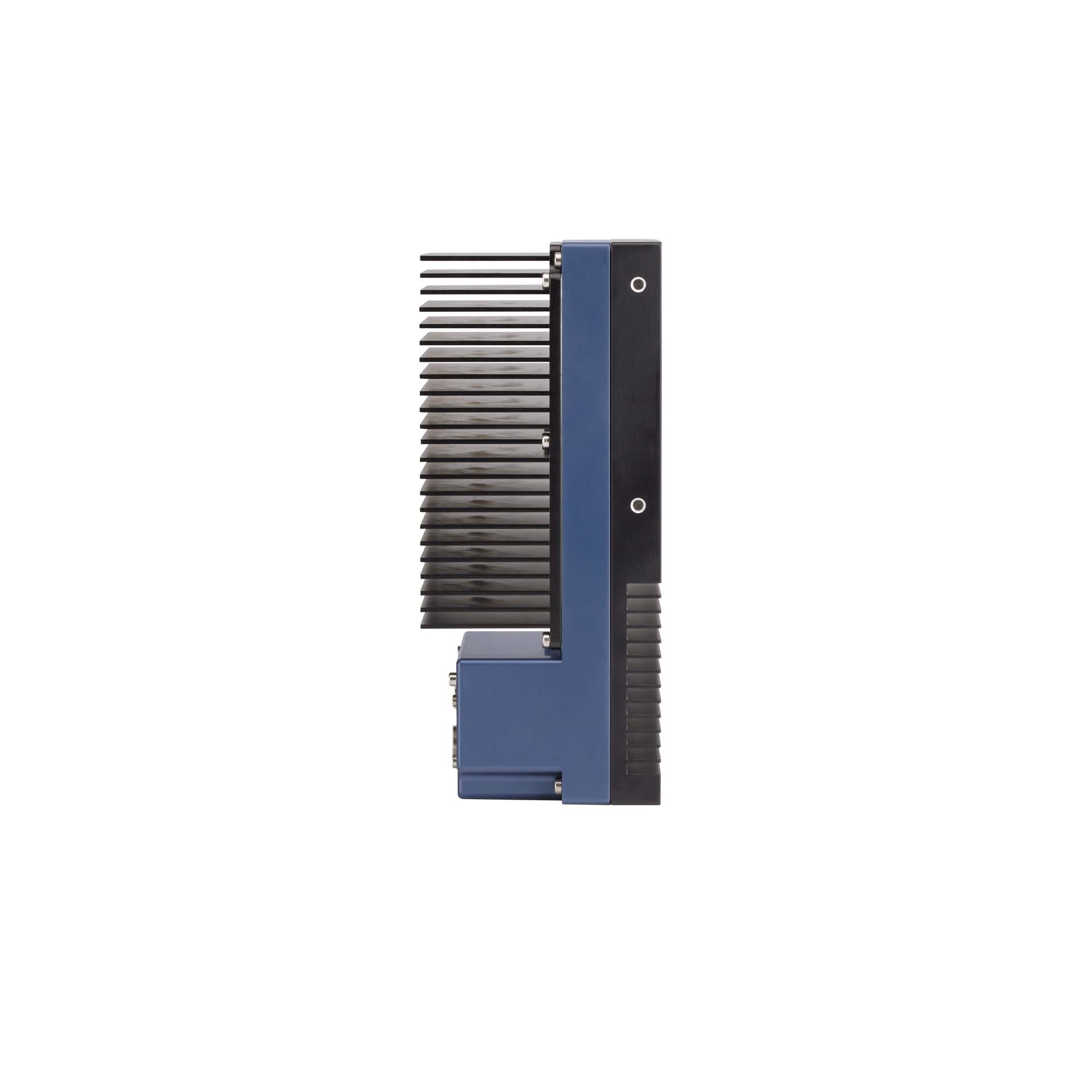

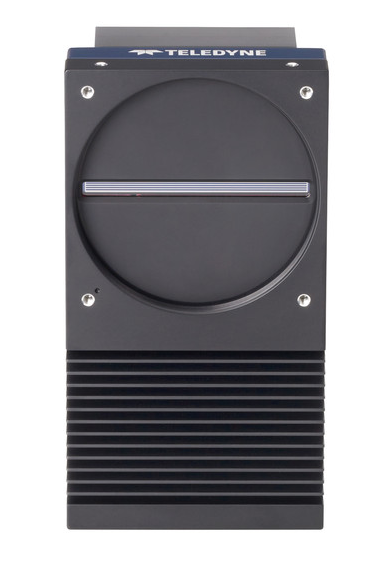

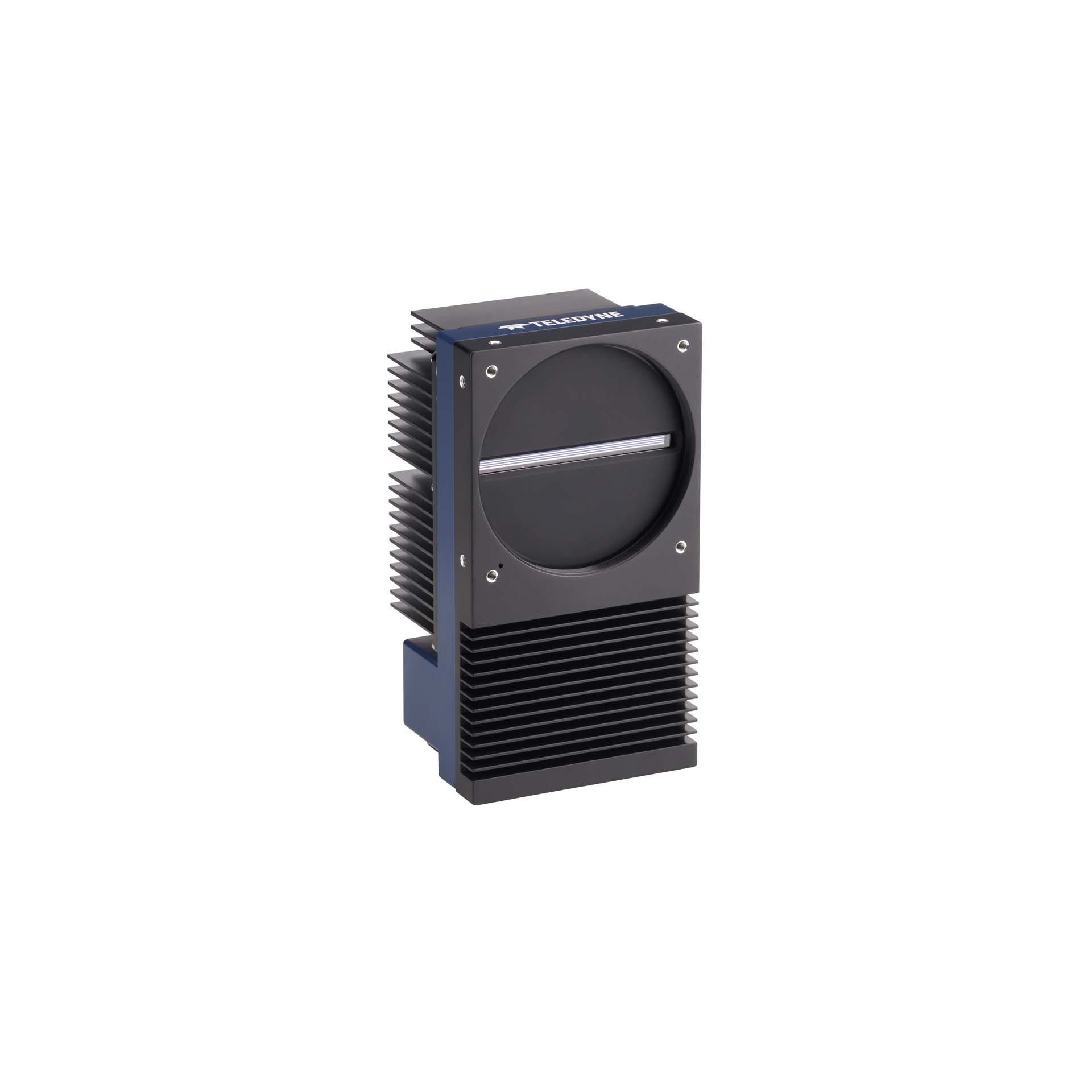

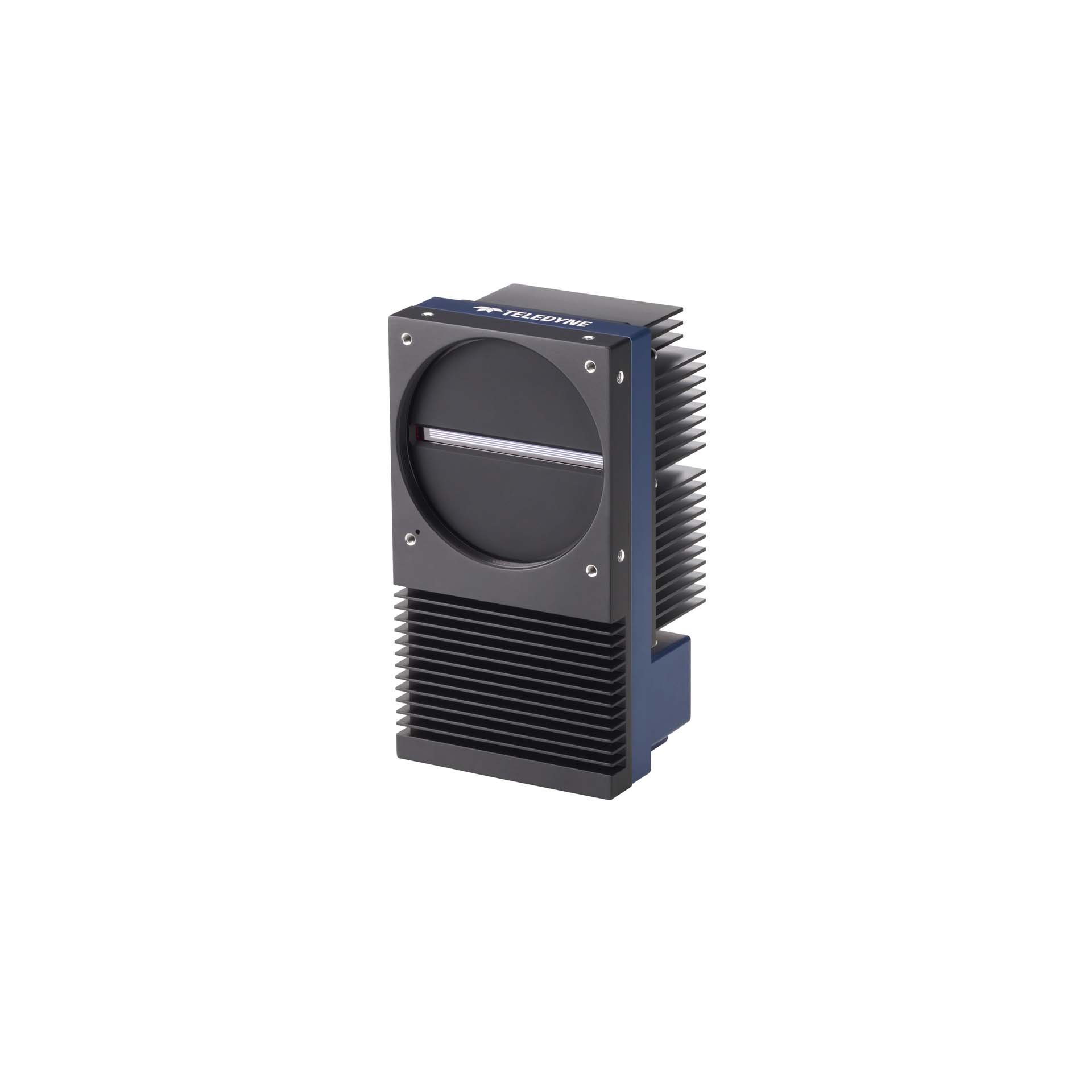

Drawing on Teledyne’s four decades of industry leading expertise, the all new Linea™ HS2 camera series represents a significant breakthrough in next generation TDI technology. Designed for ultra-high-speed imaging in light starved conditions, it delivers exceptional image quality with 16k/5 µm resolution and boasts an industry leading maximum line rate of 1 Megahertz, or 16 Gigapixels per second data throughput.

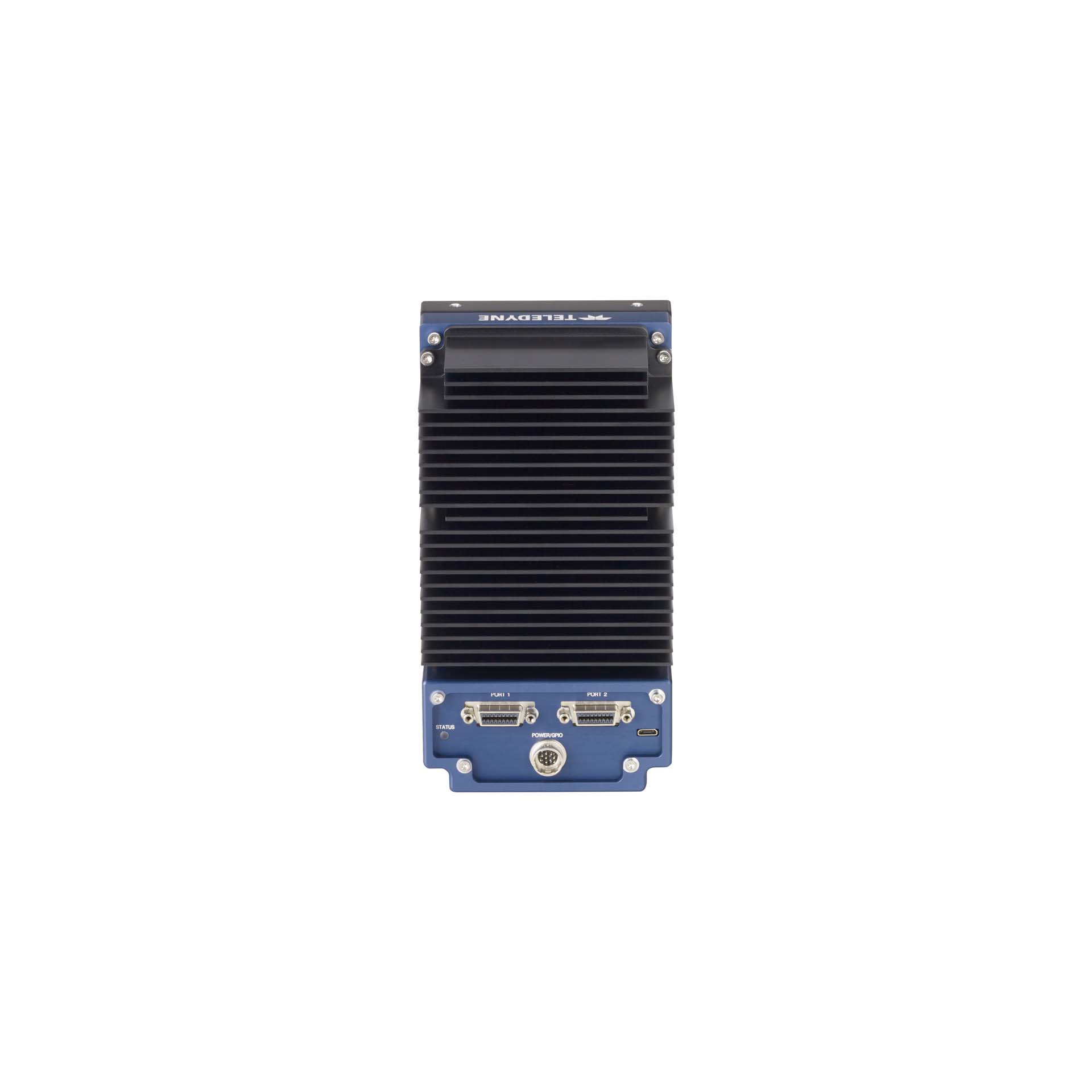

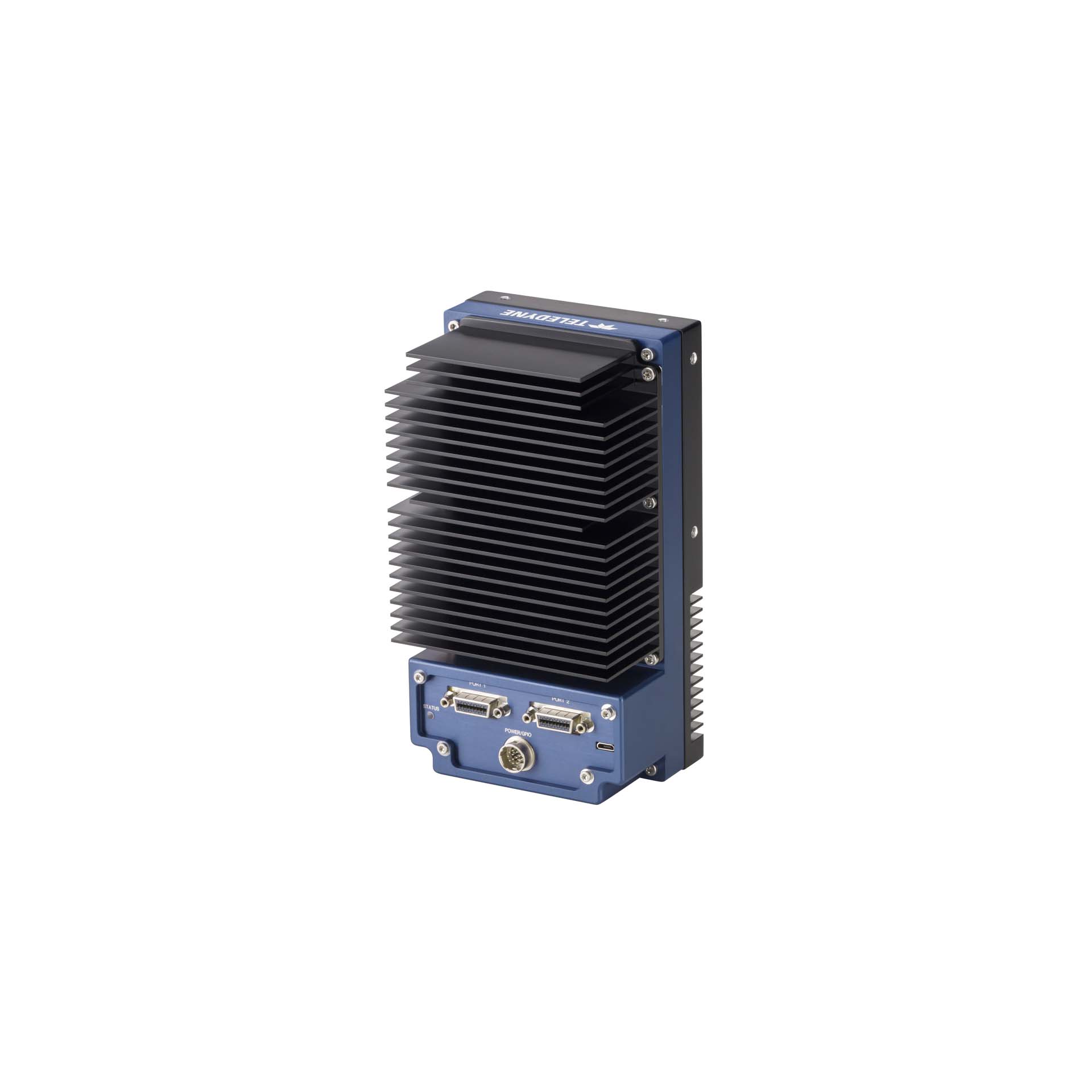

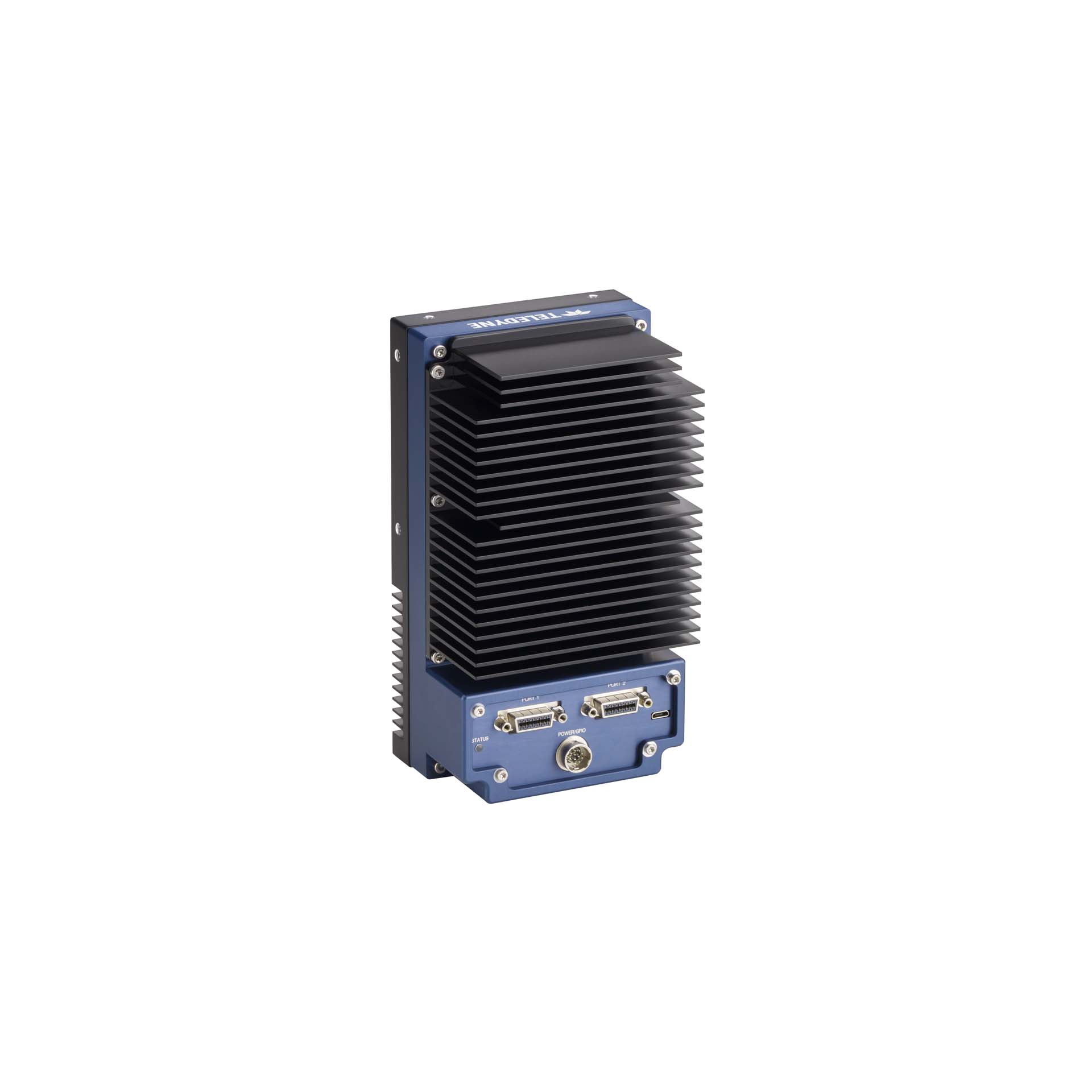

Linea HS2 features a highly sensitive Backside Illuminated (BSI) multi-array charge-domain TDI CMOS sensor with 16k/5 µm resolution and optimized Quantum Efficiency, meeting the rigorous demands of current and future machine vision applications. The multi-array TDI sensor architecture allows the camera to be configured for superior image quality with maximized line rate, dynamic range, or full well, according to specific application requirements. On-chip binning also enables higher web speeds to boost system throughput. The camera is equipped with dual Camera Link HS CX4 connectors to Active Optical Cables providing complete EMI immunity.
Linea HS2 offers an easy upgrade from Teledyne’s existing Linea HS line scan cameras, featuring the same pixel size, optics, cables, and mounting hardware, but with a 2.5 time increase in speed, while maintaining reasonable power consumption. The cameras also deliver the highest performance available, with unique features that significantly improve detectability for many demanding applications.

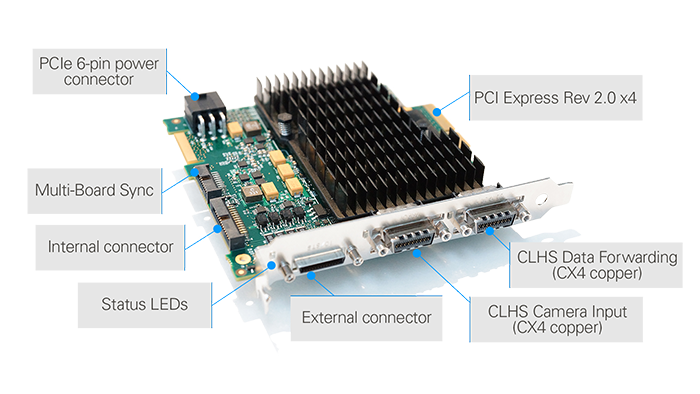

For a complete solution, the Linea HS2 camera works with Teledyne’s Xtium2 CLHS series of high-performance frame grabbers, utilizing next generation CLHS technology. The Xtium2 CLHS PX8 is built on reliable, field-proven high-speed data transmission technology, delivering data at 16 Gigapixels per second over dual CLHS CX4 connectors to active optical cables. Its data forwarding capability supports parallel data processing in up to 12 PCs and together with Linea HS2, allows for cable lengths over 100 meters with complete EMI immunity.
The Linea HS2 enables high speed and high sensitivity imaging in light starved conditions, making it particularly idea for:
If you need maximum throughput in the toughest conditions, you need Linea HS2.
| Camera Type | TDI Line Scan |
| Sensor Technology | CMOS |
| Supported Interfaces | Camera Link HS |
| Spectrum Capability | Ultraviolet (193-400 nm), Visible (400-700 nm), Near Infrared (700-1000 nm) |
| Model | Resolution | Spectrum | Interface | Pixel Size | Max Line Rate |
|---|---|---|---|---|---|
|
Linea HS2 16K Part number: H2-HM-16K100H-00-B
|
16384 x 288 | Mono | Camera Link HS | 5 µm | 1000 kHz |
| Document | Type |
|---|---|
| Linea HS2 16k TDI Camera Datasheet |
